Modern grain handling operations are transforming through sophisticated electrical automation systems that streamline everything from grain receiving to load-out operations. These customized solutions integrate advanced control technologies, monitoring systems, and safety protocols to maximize efficiency while protecting valuable agricultural commodities.

Core Electrical Components That Drive Automation

Variable Frequency Drives (VFDs): The Foundation of Smooth Operations

Variable Frequency Drives represent the cornerstone of modern grain handling electrical systems. These devices provide precise motor control that extends equipment lifespan while delivering operational benefits that directly impact your bottom line.

VFDs enable smooth acceleration and deceleration of conveyors, elevators, and distribution equipment. This controlled startup eliminates the mechanical shock that traditionally damages gearboxes, bearings, and drive components. The constant monitoring capabilities built into modern VFDs track motor current, temperature, and operational hours, providing valuable data for predictive maintenance programs.

The energy savings achieved through VFD implementation can be substantial. By matching motor speed to actual load requirements, these drives reduce power consumption during lighter operating conditions while maintaining full capacity when needed.

Electric Linear Actuators: Precision Control for Critical Applications

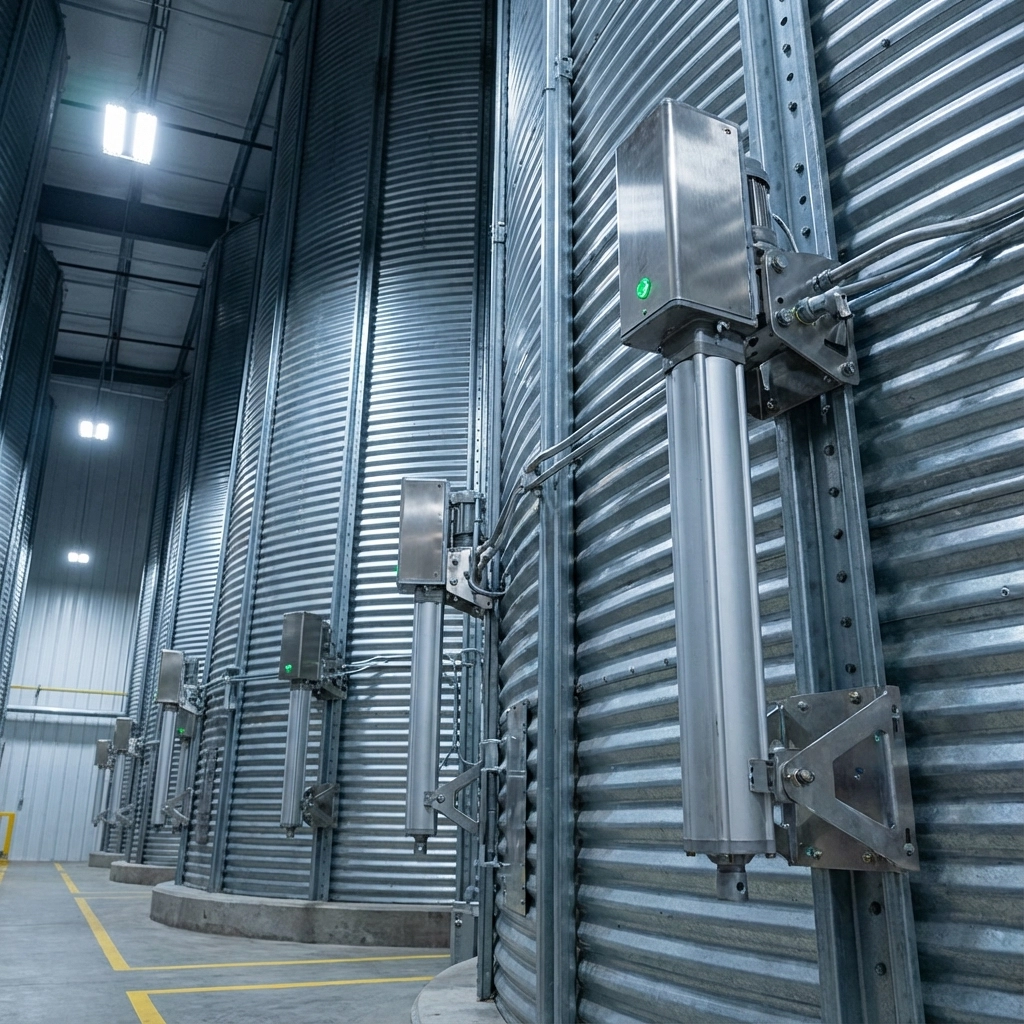

Electric linear actuators have revolutionized grain door control, diverter valve operation, and elevator gate management. These compact, certified solutions operate safely in dusty grain environments without requiring hydraulic pumps, hoses, or compressors.

Key advantages include simplified installation procedures, reduced maintenance requirements, and superior energy efficiency compared to hydraulic alternatives. The precise positioning capabilities enable accurate gate control that prevents grain spillage and ensures proper routing throughout the facility.

PLC Automation Systems: The Intelligent Brain

Advanced Process Control Capabilities

Programmable Logic Controllers serve as the central intelligence for grain handling automation. These systems enable operators to select a single source and destination, after which the automation manages all equipment activation and positioning automatically.

The PLC handles complex sequencing protocols that ensure conveyors activate in proper order, gates open to direct grain flow correctly, and distributors route material to specified locations. This automated coordination eliminates human error while optimizing operational efficiency.

Safety Interlocks and Protection Systems

Modern PLC systems incorporate specialized interlocks that automatically monitor operations to prevent overfilling, equipment plugging, or backlogging conditions. These safeguards protect both equipment and personnel while maintaining operational continuity.

The systems feature multiple layers of protection including:

Data Monitoring and Remote Management Solutions

Comprehensive Operational Data Collection

Today’s grain handling automation systems capture extensive operational data that facilities use for optimization and predictive maintenance. These systems record bearing temperatures, rub block conditions, motor current draw, and operational hours across all equipment.

Historical data review capabilities allow operators to identify trends that indicate potential failures before they occur. This proactive approach significantly reduces unplanned downtime during critical harvest periods.

Remote Monitoring Capabilities

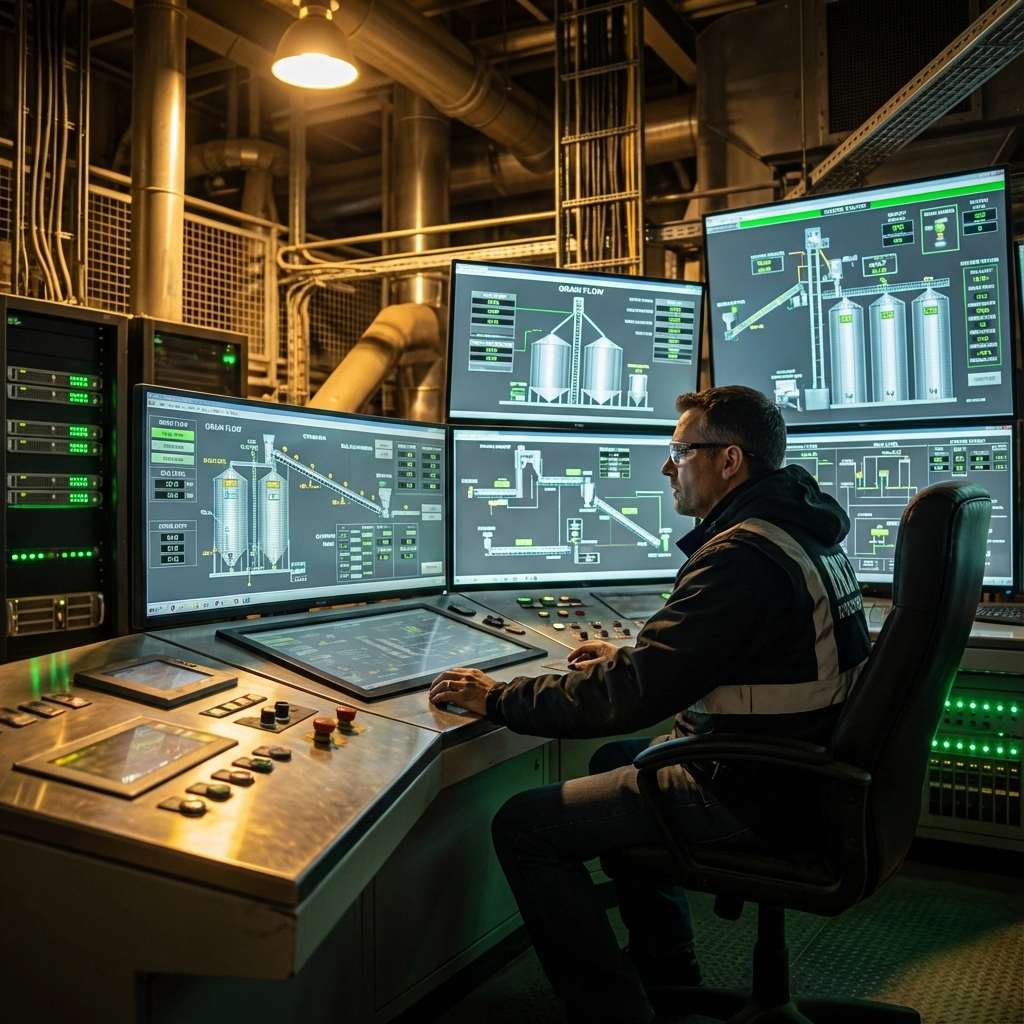

Remote monitoring enables operators to track important parameters from any location using computers, phones, or tablets. Monitored parameters include motor current, bin levels, grain moisture content, and equipment status across the entire facility.

Email and text alert systems notify personnel exactly where and when equipment issues occur, enabling rapid response that minimizes operational disruptions. These alerts can be customized based on severity levels and personnel responsibilities.

Specialized Applications and Operational Features

Grain Receiving and Storage Automation

Level sensors prevent catastrophic overflows by automatically locking out additional grain entry when bins reach capacity. The system prevents grain mismatch errors through software safeguards that block incorrect bin selections and send immediate alerts when different grain types risk being mixed.

Automated grain receiving systems coordinate truck or railcar unloading with conveyor systems, ensuring smooth material flow while maintaining accurate inventory records. RFID tag integration enables automatic identification of incoming loads and proper routing to designated storage locations.

Blending and Re-grading Operations

Systems enable precise combination of multiple grades from multiple sources into single destinations with live-adjustable ratios. Once operators configure blending parameters, they can initiate complex mixing operations with a single command, automating the entire process.

The software prevents contamination through automated controls that maintain product purity and prevent accidental mixing of incompatible grain types. This protection is especially critical when handling specialty crops or organic products that command premium prices.

Load-Out Operations and Inventory Management

Automated load-out systems control grain loading into railcars or trucks using RFID identification systems. The grain accounting software determines correct mixing ratios and sourcing while optimizing load timing and accuracy.

Real-time inventory tracking maintains precise records of grain quantities, grades, and locations throughout the facility. This data integration supports accurate customer billing and regulatory compliance requirements.

Safety and Efficiency Benefits

Enhanced Worker Safety

Automation systems significantly enhance worker safety by reducing the need for personnel to remain at bin sites during equipment operation. Automatic startup and shutdown procedures eliminate manual intervention requirements, particularly during routine grain transfers.

The systems prevent catastrophic equipment failures through continuous monitoring and predictive alerts. Temperature monitoring of bearings and drive components provides early warning of potential failures that could result in fires or structural damage.

Operational Cost Reduction

Power consumption management through optimized startup and shutdown sequencing reduces operational costs substantially. The systems eliminate unnecessary equipment operation and coordinate power usage to minimize peak demand charges.

Automated dust control systems maintain safe working environments while reducing cleanup requirements. These pneumatic systems activate automatically based on equipment operation, ensuring compliance with safety regulations while minimizing labor costs.

System Integration and Customization Options

Seamless Integration with Existing Equipment

Modern automation solutions integrate seamlessly with existing bin controls and dryer programs to create unified operational systems. When upgrading existing facilities, new automation can work with current motor controls, minimizing replacement requirements and reducing implementation costs.

The systems are designed with future expansion capabilities, allowing additional equipment and functionality to be incorporated as operations grow. This scalability protects your automation investment while providing flexibility for future improvements.

Control Interface Options

Facilities can choose between touchscreen HMI displays and computer-based control systems based on operational preferences and requirements. Manual overrides remain available for maintenance functions, ensuring technicians can operate equipment safely during service procedures.

The electrical architecture supports comprehensive asset management features including equipment tracking, downtime analysis, and complete traceability from grain receipt through facility departure. All modifications and operational data are automatically recorded for regulatory compliance and operational optimization.

Implementation Considerations for Agricultural Operations

Power Requirements and Electrical Infrastructure

Successful automation implementation requires adequate electrical infrastructure to support control systems, monitoring equipment, and communication networks. Facilities must ensure reliable power supplies with appropriate backup systems for critical control functions.

Proper grounding and surge protection are essential for protecting sensitive electronic components from electrical disturbances common in agricultural environments. Lightning protection systems should be integrated with automation equipment to prevent weather-related failures.

Understanding the electrical essentials of grain handling automation enables agricultural operations to make informed decisions about system upgrades and improvements. For expert guidance on implementing these technologies in your facility, consider consulting with experienced agricultural electrical specialists who understand the unique requirements of modern grain handling operations.

Frequently Asked Questions

What are the primary electrical components needed for grain handling automation?

The main components include Variable Frequency Drives (VFDs) for motor control, Programmable Logic Controllers (PLCs) for system coordination, electric linear actuators for gate control, and comprehensive monitoring systems for data collection and safety oversight.

How do automation systems prevent grain contamination?

Automation systems use software safeguards that prevent incorrect bin selections, provide alerts when different grain types risk mixing, and maintain strict control over material flow paths to ensure product purity throughout handling operations.

What safety benefits do automated grain handling systems provide?

These systems reduce worker exposure to dangerous equipment, provide continuous monitoring of critical parameters like bearing temperatures, prevent overfilling through automatic level controls, and enable remote operation that keeps personnel away from hazardous areas.

Can automation systems be retrofitted to existing grain facilities?

Yes, modern automation systems are designed to integrate with existing equipment and motor controls, minimizing replacement requirements while providing advanced control capabilities and monitoring functions for older facilities.

What kind of data do these systems collect and how is it used?

Systems collect operational data including motor current, bearing temperatures, equipment runtime hours, grain flow rates, and bin levels. This information supports predictive maintenance programs, operational optimization, and regulatory compliance requirements.
